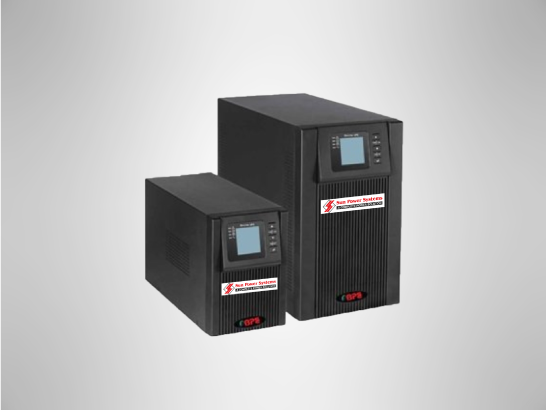

MHF Series ONLINE UPS Systems
1KVA - 10KVA
- Digital Microprocessor based design
- PWM technology using IGBT
- High inrush / Peak Current
- Large screen LCD / LED display
- Static / Manual Maintenance bypass system
- Generator Compatible
- UPS monitoring software
- Double conversion zero transfer time
- Battery under and over voltage protection
- Output overload and short circuit protection
- Less than 55db audible noise at 3.5m
- Overload capacity of 110% for 10min and 150% for 10sec
Salient Features:
Applications:
- Machines can operate in absence of main power
- Eliminates glitches and allows time to shut down your main systems
- Helps in providing stable power supply to all your machines
- Helps provide clean output to your machine
Continuity
Consistency
Protection
Filter

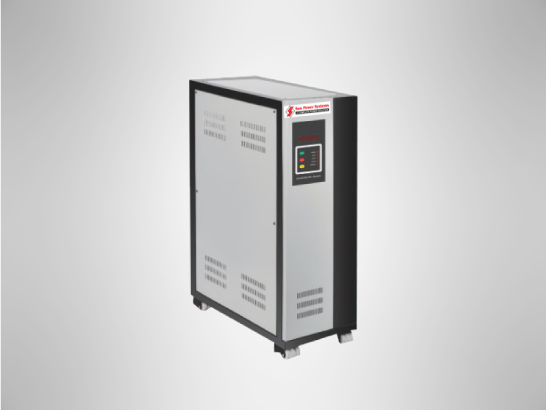

MLF Series ONLINE UPS Systems
3KVA - 200KVA
- Most advanced Microcontroller based technology with Double Conversion Topology
- Rugged, Heavy duty design suitable for Industrial application.
- Built-in Galvanic Isolation Transformer
- Unbalanced load suitability
- LCD displays UPS status and offers easy access to measurements
- Generator Compatible
Salient Features:
Applications:
- Printing Machinery, Process(CTP)
- Digital Printers, UV Flatbed Printers
- CNC Machinery, Laser Engravers
- Textile Machinery
- Pharmaceuticals Machineries & Laboratory
- Hospital Facilities
Technical Specifications
| Input Voltage | 170-270 VAC Two Wire 340-470 VAC Four Wire |
|---|---|
| Input Frequency | 47-53 Hz |
| Battery Input | 96 - 360 VDC (or as per requirement) |
| Output Voltage | 230/415 VAC (or as per requirement) |
| Regulation | ± 1% under all Lines and Load Conditions |
| Output Frequency | 50 Hz. +0.05% |
| Inverter Efficiency | Better than 90% |
| Ambient Temperature | 0°-45°C |
| Protections | Battery Under and Over Voltage Output Overload and Short Circuit |
